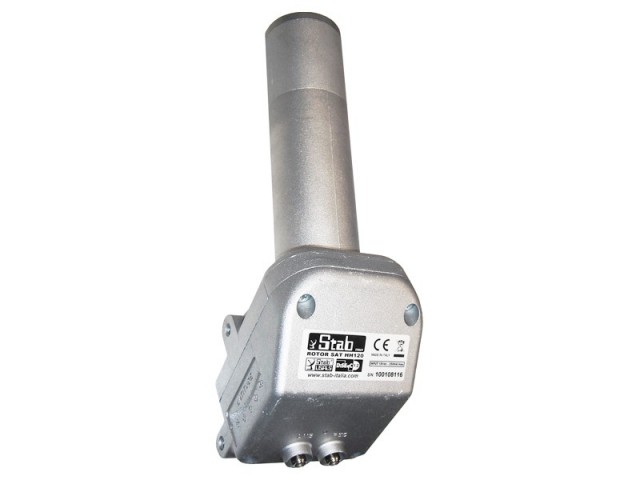

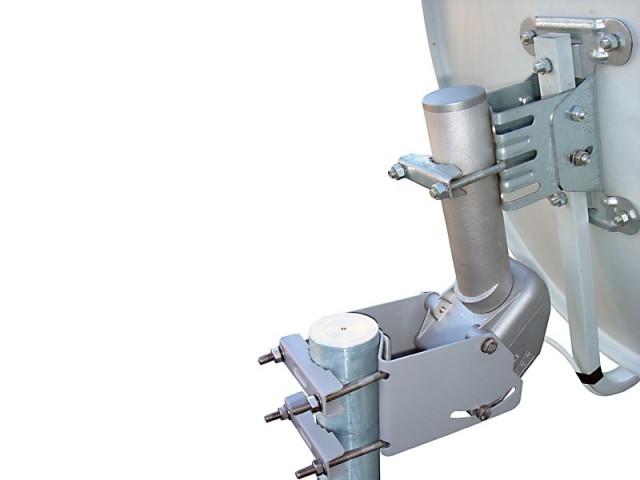

DiSEqC Motor

DiSEqC Motor Parabol motor av meget god kvalitet. Muliggjør mottak av flere satellitter med en parabolantenne.

PrisNOK1 299,00 inkl. mva.
På lager
Produsent:
Diverse Produsenter

Produktinfo



Motor - USALS met SAT FINDER




Communication Protocol DiSEqC1.2
Antenna Maximum Diameter 120 cm
Maximum Antenna Weight 17 kg
Support Pole Diameter 50 ÷ 83 mm
Lunghezza Perno Mobile 180 mm
Diametro Perno Mobile 54 mm
Rotation Angle ± 62°
Rotation Speed 0.7°/s (18 V); 0.4°/s (13 V)
Work Voltage 13 / 18 Vdc
Stand-by Consumption 30 mA
Work Absorption 190 mA
Max Consumption 350 mA
Operating Temperature -40°C ÷ +80°C
Max Relative Humidity 100%
Settable Positions (DiSEqC1.2) 49 satellites
Preset Positions (DiSEqC1.2) 28 satellites
Settable Positions (USALS) without limits
Connectors F-type
Link coaxial cable
Mechanical Limits ± 70°
Settable Electronic Limits 5° ÷ 65°
Fine Rotation 0.1° impulses
Inclinazione Del Rotore Sul Palo 15° ÷ 70°
Weight 3200 g
