GT-sat WideBand LNB

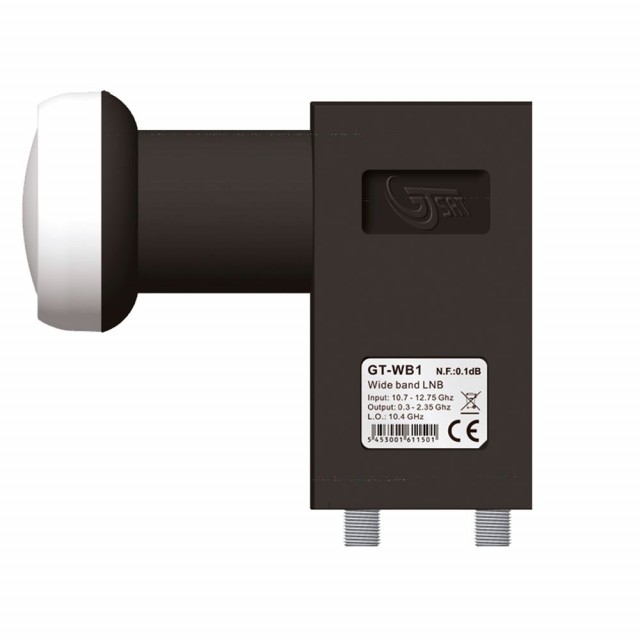

GT-sat WideBand LNB GT-WB1

TilbudNOK144,50 Førpris:NOK289,00 Rabatt -50% inkl. mva.
På lager

Produktinfo

GT-sat WideBand LNB GT-WB



Til bruk i system sammen med bla disse multiswitchene.

Sammen med riktig utstyr er dette høykvalitets LNB'et med på å gjøre kabling lettere.

Les mer om mulighetene her.



Teknisk:

Input Frequency Range  10.7 ~ 12.75 GHz
Output Frequency Range Vertical: 290 ~ 2340 MHz
Horizontal: 290 ~ 2340 MHz
LO Frequency 10.41 GHz
LO Frequency Stability +/-0.5 MHz (Max) @ Room Temp.
+/-1 MHz (Max) @ -40°C ~ +60°C
LO Frequency Phase Noise -50dBc/Hz @ 1KHz (Max.)
-75dBc/Hz @ 10KHz (Max.)
-95dBc/Hz @ 100KHz (Max.)
Noise Figure 0.1 dB (Typ.)
Conversion gain 50 ~ 60 dB
Gain variation 7 dB (max.) @ full band
Gain Flatness 26 MHz Bandwith +/-0.5dB (Typ.)
Cross. Pol. Isolation 23 dB (Typ.)
Image Rejection 40 dB (Min.)
Current Consumption 0.85W (max.) (70mA @ +12V DC)
Power voltage 9 – 19V DC
Output Connector Type 75 OHMS female F-connector
Output Spurious <-60dBm
Operating Temperature Range -40°C ~ +60°C
Feed Lenght 40 mm
